Basket type filter

Basket type filter

 Strainers

Basket type of strainer has been presented above, want more similar products, please click strainer,Filter,Y type flanged basket strainer.
Category: Basket type of strainer
Related CategoryGermany marks the Model Y strainer

Basket type filter Technical Standard

Design standard:API 602、BS5352、ASME B16.34
Connecting size:ASME B1.20.1、ASME B16.11
Inspection and test:API598

Basket Type Strainer (Simplex Inline Design)
Pressure Rating: 150# / 300#
End Connection: Flanged End
Design & Testing International Standard:
Design Standard: ANSI  Standard
Pressure Testing: ANSI  Standard
Face To Face: ANSI  Standard
Flange Drilling: ANSI B 16.5 / BS 10 Table / DIN / IS 6392
Pressure Rating: 150#, 300#
Size Range: 40mm (1) To 300mm (12)

Features & Options:

Easy cleaning or replacing the element.
Compact size and Low weight
Low Pressure drop across the filter.
Low Installation and maintenance.
with Drain Arrangement on request
Adequate strength of element and housing.
Interchangeability of component with another of same type.

Design & Testing International Standard

Material of Construction:
Body & Cover
Cast Iron to ASTM A 126 Class B
IS 210 GR. FG 200 / 220 / 260
Cast Carbon Steel to ASTM A 216 GR. WCB
SS to ASTM A 351 GR. CF 8 / 8M / 3 / 3M

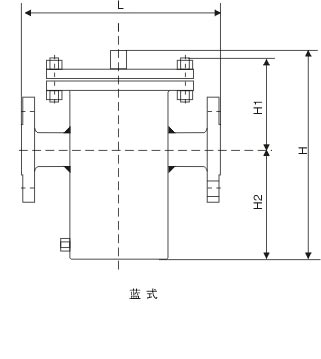

Basket type filter Dimensions data of Strainers

Products range--- Gate valve, Globe valve, Check valve, Ball valve, Butterfly valve, Y-Strainer, Valves , Fittings/Flanges/Castings etc.
