Size & Pressure : 150# DN25-DN250 / 300# DN25-DN250 / 600# DN25-DN100
Summary : CAST FLOATING BALL VALVE including Bow-out proof stem, Key lock,Anti-fire safe design, Low torque in operation

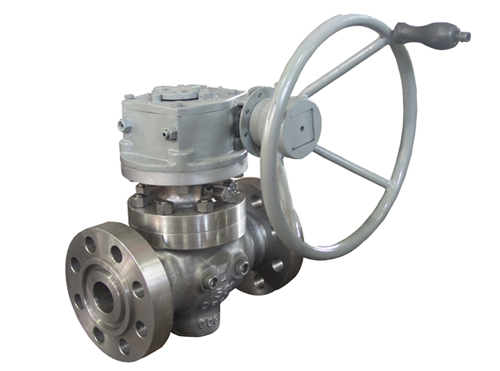

trunnion ball valve
End: flanged
Size:NPS4-NPS36
Pressure:Class150-Class2500
Ball valve Material:WCB,WC6,WC9,CF8,CF8M,CF3,CF3M

Standard: API 6D,DIN
Structure: 2 Piece Body
Pressure: Class150~Class1500
Power: Lever,Gear,Actuated
Material: A105,LF2,LF3,WCC,WCB,CF8M,CF3M
Temperature of Media: -196-425℃

Size ranges: 1”-36”
Rating:Class: Class150~Class2500
Connecting mode: Socket weld, butt-weld, flange, etc.
Material:Carbon Steel,Stainless Steel
Structure type: floating ball valve type, Trunnion ball valve type

Three way ball valve
Size: 1/2"~8"
Class: 150~300Lb
The Monolithic & Two Pieces Cast Body
Floating Ball, Full Bore
Blow-out Proof Stem
Design:API 6D/ASME B16.34
End Flange: ASME B16.5

1. Full bore Design
2. Blow-out proof stem
3. Fire safe construction
4. Anti static device
5. Urgent grease injection device
6. Self-relief in the Body cavity
7. Stopper device
8. ISO 5211 Mounting pad

Pressure rating:150LB -2500LB
Suitable medium: water, oil, gas
Optional Materials:
Carbon Steel: A105, LF2
Stainless Steel: F304, F304L, F316, F316L
Alloy Steel: F1, F5, F5A, F9, F11, F22

Trim changes
End connection modifications
Packing and gasket change
Operator mounting
Handwheel extensions
Pressure equalizing
Customer specified coatings
Weld end bore changes
