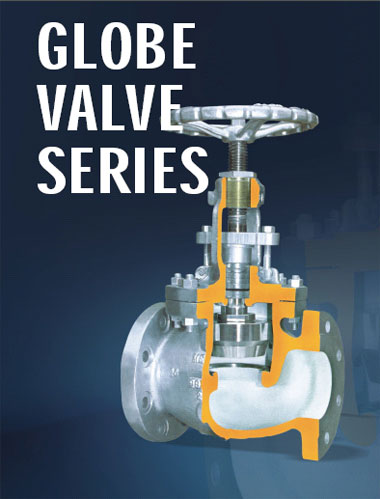

1500Lb CAST STEEL Globe valve

1500Lb CAST STEEL Globe valves

Applicable standards:
Steel glboe valves, BS 1873 / API 600
Steel valves, ASME B16.34
Face to face, ASME B16.10
Flanges end, ASME B16.5
Buttwelding ends, ASME B16.25
Inspection and test, API 598

Design description:
Straight patteren body design
OS & Y,outside screw and yoke
BB,Bolted bonnet
Yoke intergral with bonnet
Rising stem and handwheel
Loose disc,choice of plug or ball
Renewable seat ring
Impact handwheel for 10" & above
Horizontal servece
Flanged or buttwelding ends
Available with bg operator

1500Lb CAST STEEL Globe valve Materials of parts

Note: 1).Ductile Ni-Resist optional
           2).Wedge and seat ring may either be solid facing material or a base material equal to or better than the body/bonnet material with facing as shown.

CAST STEEL Globe valve 1500Lb Dimensions data
