MSS-SP 81 Knife Gate Valve



MSS-SP 81 Knife Gate Valve (Soft/Metal Seal)

Applicable/Product Standards:
Design: MSS-SP-81
Soft Seal & Metal Seal
Bi-directional Seal
Face to face: MSS-SP-81
Connection Ends: ASME B16.5
Wafer, Lugged, Flanges
Inspection and test, API 598

Design/Production Description:
Full Port Design
OS&Y,Outside Screw and Yoke
BB, Bolted Bonnet
Fully guided
Solid Disc







Gate Valve Series

· 1. Two-way ZERO LEAKAGE shut-off from full vacuum to the rated pressure of 150 psi
      (water test).
· 2. True bidirectional flow and shut-off, can be installed in either direction.
· 3. Larger flow area, minimum pressure drop.
· 4. Pressure against the gate is not required to achieve a seal.
· 5. Unsurpassed low-pressure Knife Gate Valve seal.
· 6. Mechanically retained seat prevents pullout*.
· 7. Knife Gate Valve Seat is field replaceable.
· 8. 316 solid cast stainless steel body.
· 9. MSS face-to-face.
· 10. Cast Super Yoke features: Top removal stem nut, Standard open and closed lockout positions
· 11. Heavy cross section I-beam leg


WINDMILL Gate Valve Feature:

Full Port Design
OS&Y,Outside Screw and Yoke
BB, Bolted Bonnet
Fully guided
Solid Disc
Size: 2"-48"
Pressure: 150LB,300LB
Connection: Flanges, RTJ Flange, Wafer, Lugged
Material:
Carbon Steel, Forged Steel, Stainless Steel: WCB,LCB,LCC,LC1,CF8,CF8M,CF3,CF3M,WC6,WC9, C5,C12,C12A
Specifical Material:
Duplex Steel, Super Duplex Steel, Inconel: GR4A, GR6A, CY-40, Inconel 600
Operate: Handwheel, Wormgear, Gearbox, Penumatic Actuator, Electric  Actuator, Hydraulic Actuator.

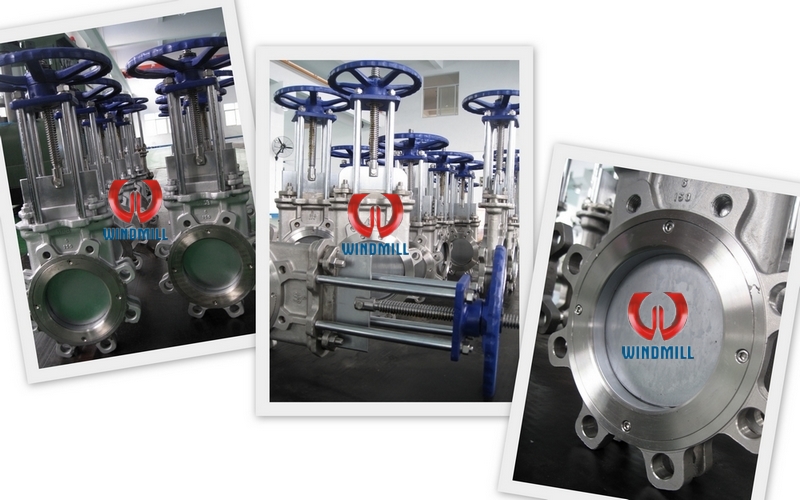

WINDMILL Knife Gate Valve Picture:

 More Information/Inquire/Catalog, Please contact with our Sales: sale@dfcvalve.com; sales@dfcvalve.com
