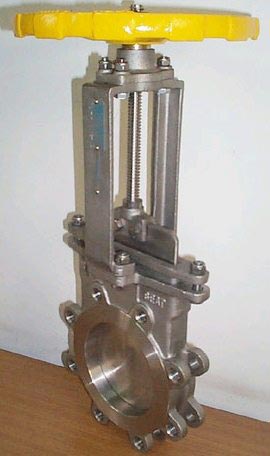

Stainless Steel Knife Gate Valve

STAINLESS STEEL KNIFE GATE VALVES

Cast stainless steel body, gate, packing gland and yoke.

- Heavy duty designed body to resist deflection from line loads and internal pressure.

- Gate designed to withstand full 150 PSI rated pressure as required by MSS-SP-81.

- Body cavity, seat configuration and beveled gate designed to provide shut-off capability in thick media such as pulp stock, slurries, or with solid media such as pellets or powders.

- Heavy duty cast stainless steel yoke will not bend or twist under extreme loads.

- Easy conversion from handwheel operator to cylinder, bevel gear or electric motor operator using cast yoke.

- Enclosed brass stem bushing provides reduced operating torque and protection of the stem bushing from harsh environments.

- Hard faced seat available to prevent galling in high cycle and/or high end pressure applications or abrasive applications.

- O-Ring resilient seat available.

- Precision machined stainless steel gate for superior seating capability.

- Stainless steel stem for corrosion resistance.

- Teflon wiper available in packing to provide gate support and stabilize packing seal.

- Designed and tested to MSS-SP-81 dimensions and specifications.

- Full port ID. - Minimum 4 bolt packing gland to assure proper gland alignment in sizes above 3".

- TFE lubricated synthetic packing (TLSP) rated for 400 F with a PH range of 3-11 is standard

Contact Now

If you have Stainless Steel Knife Gate Valve any enquiry about quotation or cooperation, please feel free to email us at sale@dfcvalve.com or use the following enquiry form. WINDMILL sales representative will contact you within 24 hours. Thank you for your interest in our Stainless Steel Knife Gate Valve products.
