FORGED STEEL SWING VALVE (RF/NPT/BW ends)

Forge steel check valve

150LB/300LB/600LB/900LB/1500LB/2500LB

Applicable standards:
Design STD: API 602,ASME/ANSI B16.34
Face To Face: ASME B16.10
Flange End Connection: ASME/ANSI B16.5
Welded End Connection: ASME/ANSI B16.25
Inspection And Test: API598

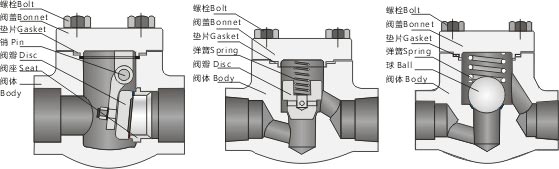

WINDMILL Check valves are available in three bonnet designs. The first design is the bolted bonnet, with male-female joint, spiral wound gasketmade in F304L/graphite, ring joint gasket are also available on request. The second design is the welded bonnet, with threaded and seal welded joint. On request a full penetration strength welded joint is available. The third design is the pressure seal bonnet, with a threaded and pressureseal bonnet joint. The check valve are also available in three different design configurations. These are piston check,ball check or swing checkdesigns.

1.Ends:NPT,SW,BW,RF,RTJ
2.RF/RTJ:Welded or integral flange type
3.Bonnet:Welded,bolted or pressure seal type
4.Disc: Lift or swining type.
5.Bore:reduce bore or full bore
6.Shape : T type or Y type.
6.NEW:1) We can supply up to 12" forged type valve.
             2) Carve different logo on valve body.

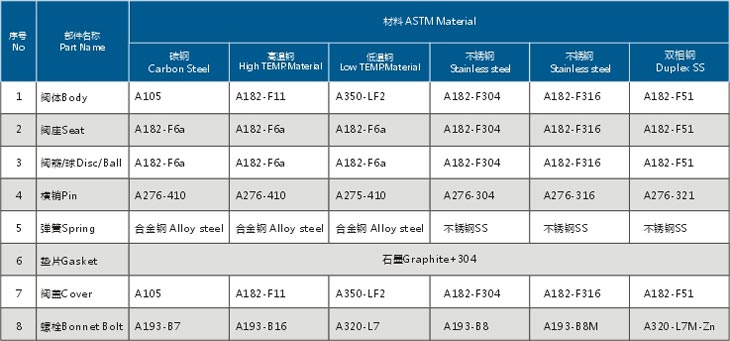

Forged steel check valve Materials of parts



Contact Now

If you have FORGED STEEL SWING VALVE (RF/NPT/BW ends) any enquiry about quotation or cooperation, please feel free to email us at sale@dfcvalve.com or use the following enquiry form. WINDMILL sales representative will contact you within 24 hours. Thank you for your interest in our FORGED STEEL SWING VALVE (RF/NPT/BW ends) products.
