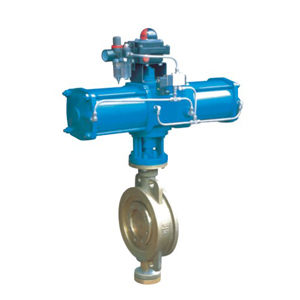

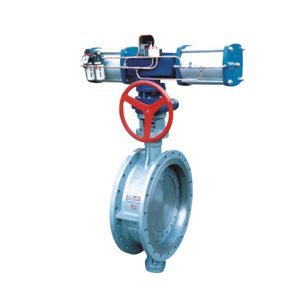

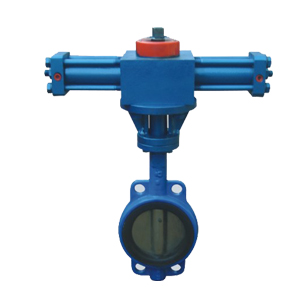

Penumatic Actuator Butterfly Valve



Butterfly Valves Automatic Series  are with Features as below:
Resilient Seated or Metal Seated Design
Concentric or Eccentric (Single Eccentric, Double Eccetric, Tri-eccentric) Design

Wafer, Lug, Butt Welded, Groorved or Flanged Ends

Designed and Manufactured to BSEN593 and MSS SP-67 and API 609
Suitable to ANSI 125/150/300/600/900, PN10, PN16, PN25, PN40, PN64, BS4504, DIN flanges
Size Ranges: NPS 2"~200"

Pressure Rating: PN10/16, PN25, PN40, PN64, ANSI125/150/300/600/900

Materials available in Iron Steel, Carbon Steel, Stainless Steel, Duplex Steel and Bronze,
Seat Material in Both Resilient and Metal Type.
Different trim materials of Butterfly Valve are available to suit different service conditions.

Fire-safe design to API 608/API 6FD upon request

To, API Fire Safe On request
◆ MSS SP 01-75
◆ Pressure tests: API 598 / B 6 6755 Part 1
◆ Fire safe: API 607 4th Edition / API 6FA / BS 6755 Part II

Operations in Lever, Worm-gear, Electric, Pneumatic and Hydra-pneumatic



Contact Now

If you have Penumatic Actuator Butterfly Valve any enquiry about quotation or cooperation, please feel free to email us at sale@dfcvalve.com or use the following enquiry form. WINDMILL sales representative will contact you within 24 hours. Thank you for your interest in our Penumatic Actuator Butterfly Valve products.
