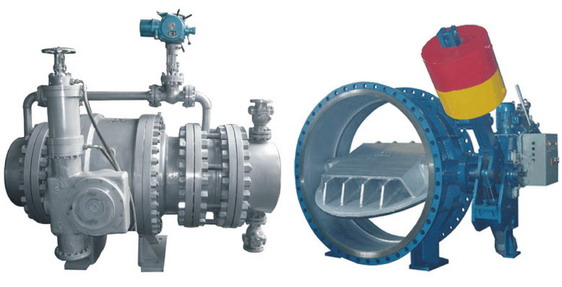

Hydraulic Control Slow Closing Non-return Butterfly Valve, Normally named as Counterweight Butterfly Valve is one type of Advanced Productsused for management on Controlling Equipments. They are widely used into the area of entrance of Turbine in Hydraulic Power Station, or installed in the pump exit of irrigation, electric and water treatment areas which can replace the functions of Gate valve and Check Valve. When such product of Hydraulic Counterweight Butterfly Valve is operated, this valve is matched together with main pipeline systems, based on the principle of water pass procedures, through the pre-set on/off procedures, effectively derived the water hammer through the pipeline to realize the flow cut-off and ensure a safety or protection function onto such systems
Counterweight Butterfly Valves are with following features
1. This Type of Valve of Counterweight Butterfly Valve Can replace the function of Gate Valve or Check Valve from entrance of water pump, with a integral parts of Mechanical, electric and hydraulic a uni-body which can reduce the landing area and base investment etc.
2. With complete function of Both Electric and Hydraulic, there is no need to equip other devices which can be used as a separate system to debug and control at site, this valve can also be services as one unit of system for DCS, managed by central computer through the I/O to realize the united-operation by the water pump, turbine, bypass valve and other pipeline equipments, moreover, this kind of valve is also equipped with handwheel which can ensure that the valve can be operated even without electric power to meet a special debug and controlling requirements under a special work condition.
3. With features of good performance controlling and Wide range of adjustment, rechon vango hydraulic Counterweight Butterfly Valve are with many regulators inside of the Hydrau-electric system which can on/off the system set conforming to different pipelines' requirements, by this way, not only make the valve meet the requirement of on/off condition, further ensuring the valve can (only) be opened at the pre-set time and angle, closed at the pre-set separately and slowing 2nd stage. To realize the valve off without power, effectively eliminated the water hammer and prevent the accidents caused between water pump and turbine, reduce the pressure fluctuation of pipe-network, ensuring a safety and reliable operation of system equipment
4. Main Sealing is with Secondary sealing of Triple-eccentric or double-eccentric sealing structure which is easy on/off and reliable in sealing. Further more; there is an extra enlarged eccentric structure to ensure the Hydraulic Counterweight butterfly valve is with perfect self-sealing function. Small and mid-sized butterfly discs are designed with streamline plate structure, while the big sized discs are with double plated york type structure with small crush, smooth flow, valve co-efficiency is within 0.1~0.6 which is more smaller than the ones of check valves (1.7~2.6).
Our Hydraulic Valves Manufacturing and Supplying Capability covering: Hydraulic Counterweight Butterfly Valve, Accumulated Type Hydraulic Butterfly Valve, Hydraulic Power Spheric Valve, Hydraulic Power Station Ball Valve and Hydraulic Accumulated Type Spherical Valve etc.
