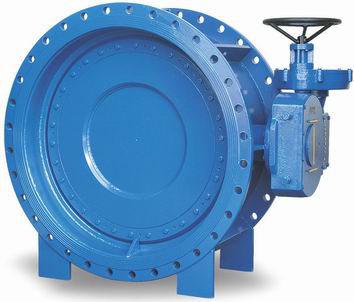

Flange Butterfly Valve(Double Eccetric,Triple Eccentric

Iron Flange Butterfly Valve

Double Eccetric, Triple Eccetric

DN100 to DN5000

PN10 - PN40





  • Body : Steel ST37 or ST52
  • Disk : Steel ST37 or ST52
  • Shaft : S.S X20 Cr 13 or AISI 316
  • Seat : Stainless Steel Clad
  • Seal : Elastomer NBR or Perbunan
  • Worm Gear : Ductile Iron
  • Pressure : PN10/PN40
  • Flanges : DIN 2501, ISO 7005-2, ANSI or any other standard
  • Face to Face : ISO 5752, DIN 3202
  • Top Flange : ISO 5211/1











Contact Now

If you have Flange Butterfly Valve(Double Eccetric,Triple Eccentric any enquiry about quotation or cooperation, please feel free to email us at sale@dfcvalve.com or use the following enquiry form. WINDMILL sales representative will contact you within 24 hours. Thank you for your interest in our Flange Butterfly Valve(Double Eccetric,Triple Eccentric products.
