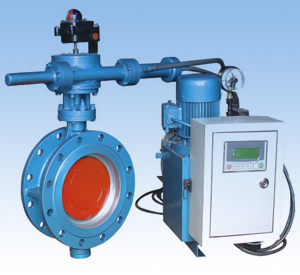

0.5 Seconds Quick Closing Butterfly Valve wtih hydraulic control group

Nominal diameter: DN150 ~ DN2000 Nominal pressure: PN2.5 ~ PN40 Suitable medium: water, steam, gas, oil, etc. Medium temperature: ≤ 425 ℃ Valve open time: 10 ~ 90 seconds (adjustable) Normal off valve: 10 ~ 90 seconds (adjustable) Quick closing valve: 0.3 ~ 0.8 seconds Full-state minimum flow resistance coefficient: 0.1 Power supply: AC380V Optional control power supply: AC220V, DC220V, DC110V, DC24V Can control the action: open valve, closing valve, stop, 15 degree swimming, fast pass, fast off the remote fault interlock Remote signal types: passive switch signal, 4 ~ 20mA analog signal

Express turn off fluid control valve installed in the main turbine extraction steam piping,
blast furnace gas pressure generating device (TRT) into the trachea such as road safety Level system,
a crisis in the system operating conditions at 0.3 ~ 0.8 seconds emergency clearance valves,
piping achieve a reliable cut-off, the protection of system security.
My factory production turn off hydraulic control valve seal Express deputy for three eccentric structure, headstock relax, reliable sealing.
Compact gearbox, tail fuel tanks with a buffer device, the elimination of quick clearance when the impact of the fuel tank.
Hydraulic control valves are used mainly in Germany Rexroth international brand manufacturers such as thread-type cartridge valve products, a very small space.
Sluicegate ordinary operation, made possible the oil pressure pump or turbine, TRT host supporting the provision of hydraulic station, fast turn off when the accumulator through the rapid release of energy to achieve.
In addition to a relief of the valve opening, ease customs clearance, customs quickly, and stop such action,
the wide-open spaces can also be used for 10% of stroke swimming test, the system in an emergency valve clearance card will not stop.
The electric control valve using PLC intelligent control system, easy operation, reliable performance, intelligent high degree of automation and control fully meet user needs
