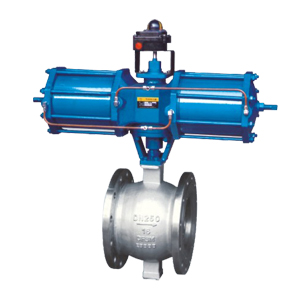

V Port Ball Valve (Control Valve)



 V Port Ball Valve (Control Valve)

Applicable standards:
V Port Ball Valve
Availability for granular medium
Size: 1/2" - 8"
Pressure: 150Lbs-600Lbs
Face to face: ANSI B16.10
Flanged connection: ANSI B 16.5
Testing: API598
Top flange: ISO 5211 for actuator
Actuator: pneumatic actuator and other types

Design description:
Full port design
Floating ball type
Blow-out proof stem
Fire durable construction
Anti static device
ISO5211 mounting pad
Flanged or butt welding ends
Available with actuator operator
